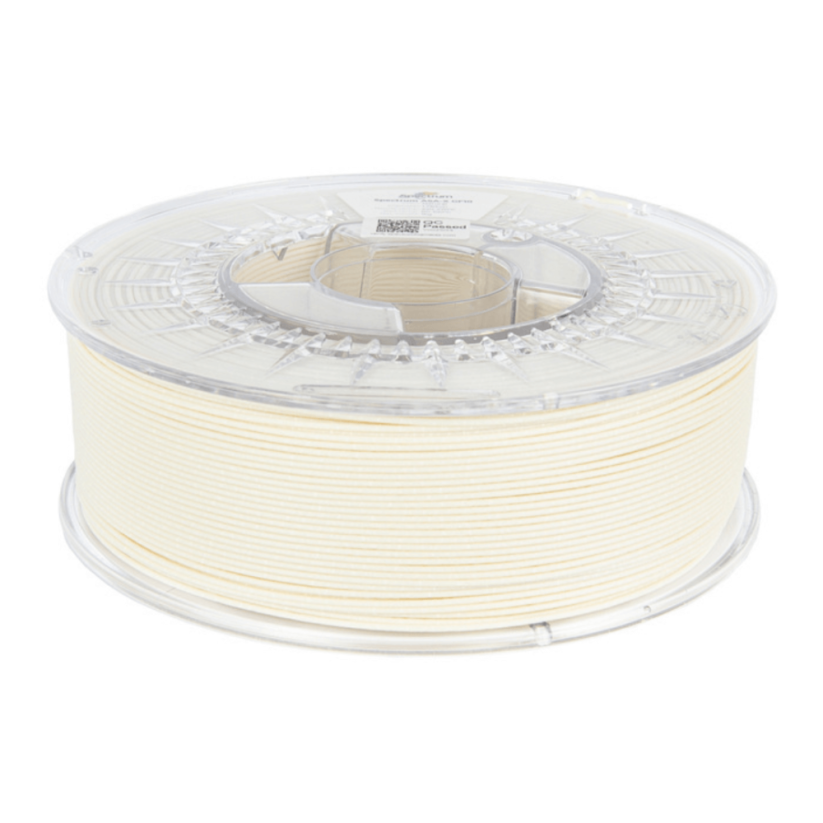

Spectrum ASA-X GF10 natural
Spectrum ASA-X GF10 natural
Spectrum ASA-X GF10 is the ideal choice for those seeking a material with high mechanical strength, resistance to outdoor conditions, and ease of printing. More
Manufacturer: SpectrumProduct code: TIFSCE140 Shipping and Payment
Spectrum ASA-X GF10 is the ideal choice for those seeking a material with high mechanical strength, resistance to outdoor conditions, and ease of printing. More
Manufacturer: SpectrumProduct code: TIFSCE140 Shipping and Payment
Spectrum ASA-X GF10
Spectrum ASA-X GF10 is a highly durable composite material based on ASA polymer, enriched with 10% glass fibers. This material offers exceptional mechanical strength and toughness, making it an ideal choice for applications requiring long-term resistance to UV radiation, moisture, and mechanical stress. The matte surface finish also ensures an aesthetically pleasing appearance of printed parts.
Product Applications
Spectrum ASA-X GF10 is designed for a wide range of applications, including:
- Functional prototypes
- Manufacturing tools
- Production of enclosures and covers
- Parts exposed to abrasive wear
- Structural elements for outdoor use
Usage Recommendations
- Nozzle temperature: 240-270°C
- Bed temperature: 80-100°C
- Print speed: 30-70 mm/s
- Recommended wall thickness: 0.40 - 2.70 mm
- Recommended layer height: 0.05 - 0.30 mm
- Ventilation: up to 100%
- Enclosed chamber: not required, but recommended for larger prints
- Filament dryer: not required
- Adhesive measures: not necessary, but for better adhesion, Dimafix, 3DLac, or Magigoo can be used
Technical Specifications
- Material: ASA with 10% glass fiber content
- Available diameter: 1.75 mm / 2.85 mm
- Diameter tolerance: +/- 0.03 mm
- Density: 1.11 g/cm³
- HDT thermal resistance: 100°C
- Vicat softening temperature: 98°C
- Surface finish: semi-matte
- UV resistance: yes
- Outdoor resistance: excellent
Packaging
The Spectrum ASA-X GF10 filament is wound on a transparent spool that contains information about the material type, diameter, and recommended printing temperature. The filament is vacuum-packed with a moisture absorber, ensuring its long-term quality. The entire product is packaged in the original, labeled Spectrum Filaments box.
Color | |
---|---|
Manufacturer | Spectrum |
Filament weight | 1 Kg |
Filament material | ASA |
Compatible with AMS | Partially compatible |
Compatible with AMS Lite | Yes |
Recommended by Voron Community | Yes |
Filament diameter | 1,75 mm |
Heated bed temperature | 80 - 100 °C |
Hotend temperature | 240 - 270 °C |
Diameter tolerance | ± 0,03 mm |
Spool diameter | 200 mm |
Material surface | Matt |
Spool hole diameter | 52 mm |
Softening temperature | 98 °C |
Closed chamber | Not required |
Roundness tolerance | ± 0,03 mm |
Difficulty of printing | Advanced |
Heat Distortion Temp | 100 °C |
