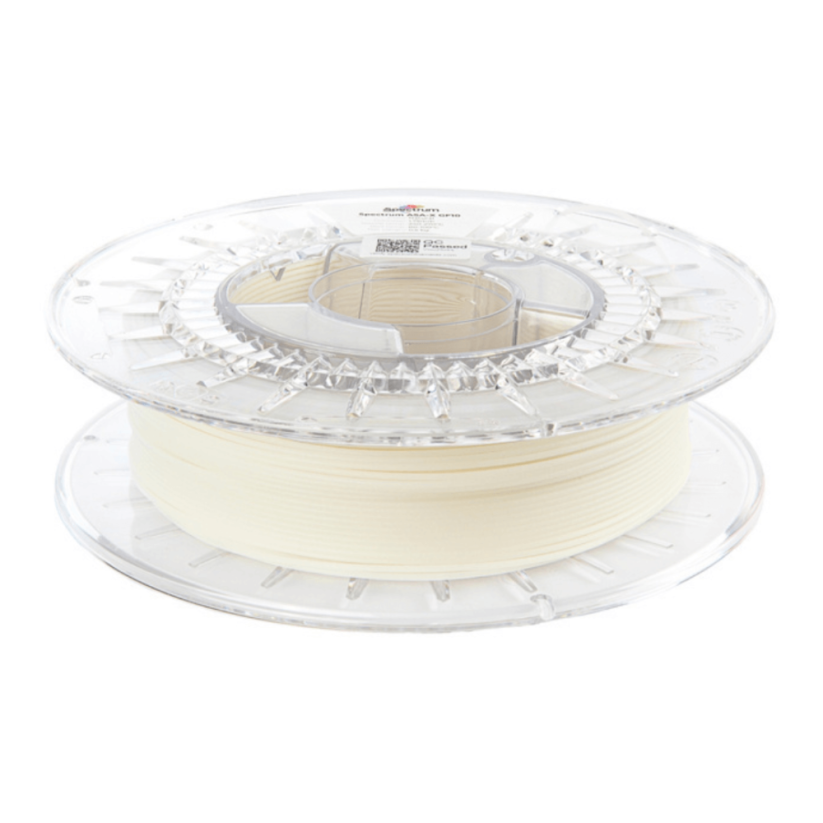

Spectrum ASA-X GF10 natural 0,5kg

Spectrum ASA-X GF10

Spectrum ASA-X GF10 is a highly durable composite material based on ASA polymer, enriched with 10% glass fibers. This material offers exceptional mechanical strength and toughness, making it an ideal choice for applications requiring long-term resistance to UV radiation, moisture, and mechanical stress. The matte surface finish also ensures an aesthetically pleasing appearance of printed parts.

Product Applications

Spectrum ASA-X GF10 is designed for a wide range of applications, including:

• Functional prototypes
• Manufacturing tools
• Production of enclosures and covers
• Parts exposed to abrasive wear
• Structural elements for outdoor use

Usage Recommendations

• Nozzle temperature: 240-270°C
• Bed temperature: 80-100°C
• Print speed: 30-70 mm/s
• Recommended wall thickness: 0.40 - 2.70 mm
• Recommended layer height: 0.05 - 0.30 mm
• Ventilation: up to 100%
• Enclosed chamber: not required, but recommended for larger prints
• Filament dryer: not required
• Adhesive measures: not necessary, but for better adhesion, Dimafix, 3DLac, or Magigoo can be used

Technical Specifications

• Material: ASA with 10% glass fiber content
• Available diameter: 1.75 mm / 2.85 mm
• Diameter tolerance: +/- 0.03 mm
• Density: 1.11 g/cm³
• HDT thermal resistance: 100°C
• Vicat softening temperature: 98°C
• Surface finish: semi-matte
• UV resistance: yes
• Outdoor resistance: excellent

Packaging

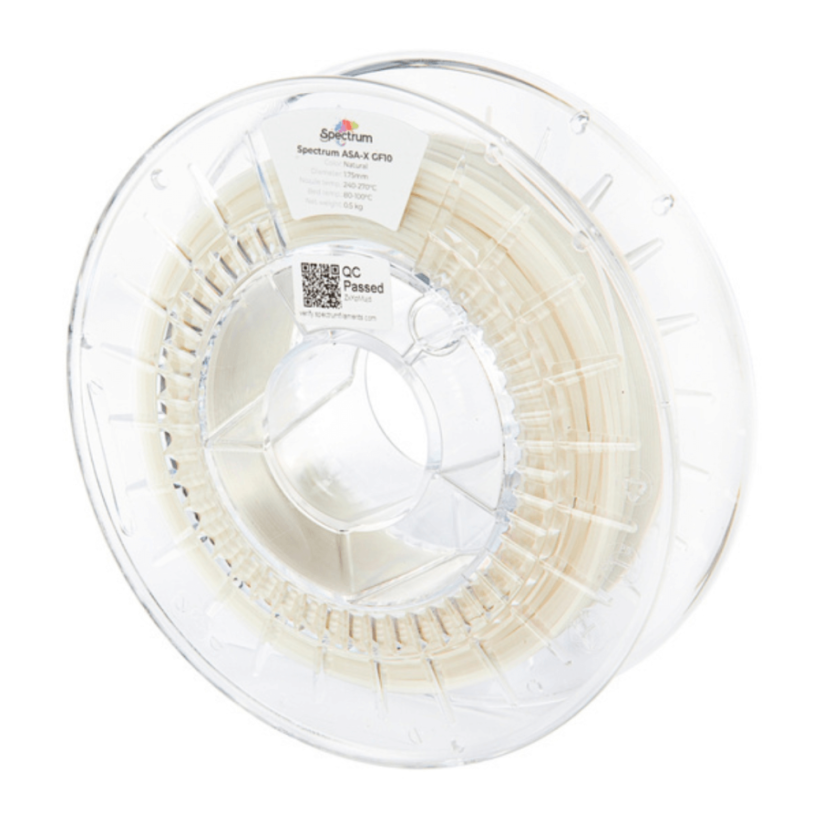

The Spectrum ASA-X GF10 filament is wound on a transparent spool that contains information about the material type, diameter, and recommended printing temperature. The filament is vacuum-packed with a moisture absorber, ensuring its long-term quality. The entire product is packaged in the original, labeled Spectrum Filaments box.
