Spectrum HIPS-X deep black
Spectrum HIPS-X deep black
Spectrum HIPS-X is an ideal choice for anyone looking for a reliable and versatile material for additive manufacturing with high durability and aesthetic properties. More
Manufacturer: SpectrumProduct code: TIFSCE191 Shipping and Payment
Spectrum HIPS-X is an ideal choice for anyone looking for a reliable and versatile material for additive manufacturing with high durability and aesthetic properties. More
Manufacturer: SpectrumProduct code: TIFSCE191 Shipping and Payment
Spectrum HIPS-X is a highly durable filament designed for 3D printing using FDM (Fused Deposition Modeling)/FFF (Fused Filament Fabrication) technology. This material excels in its high impact strength and impact resistance. This makes it suitable for printing parts that need to withstand demanding conditions and partially absorb energy.
HIPS-X is most commonly used as a support material when printing with ABS. After printing is complete, the support structures made of HIPS-X can be easily dissolved in a D-Limonene solution. Additionally, HIPS-X can also be used as a primary printing material with low shrinkage during cooling.
Main product advantages
- High impact resistance: Spectrum HIPS-X provides exceptional impact strength, making it an ideal choice for demanding industrial applications.
- Matte surface: The matte surface makes the layers less visible, improving the aesthetics of printed parts.
- Low shrinkage: This material has a lower shrinkage rate than classic ABS, ensuring better dimensional stability.
- Fully soluble in D-Limonene: After printing, the support structures can be easily removed by dissolving in D-Limonene.
- Mechanical processing capability: HIPS-X can be easily sanded, turned, milled, and drilled.
Uses of Spectrum HIPS-X
- Support material for ABS printing
- Industrial parts requiring impact resistance
- Prototyping and conceptual model production
- Artistic objects and sculptures
- Packaging material
Low hardness makes HIPS-X easy to work with even using hand tools. The material can be drilled, turned, milled, and sanded after printing.
Usage recommendations
- Nozzle temperature: 230-245°C
- Bed temperature: 80-100°C
- Printing speed: 40-100 mm/s
- Recommended wall thickness: 0.40 - 2.70mm
- Recommended layer height: 0.05 - 0.30mm
- Fan speed: 0-20%
- Enclosed chamber: Recommended for larger prints
- Adhesives: Not necessary, but for better adhesion, you can use Dimafix, 3DLac, or Magigoo.
Technical parameters
- Material: HIPS
- Diameter: 1.75 mm
- Diameter tolerance: +/- 0.03 mm
- Density: 1.05 g/cm³
- Thermal resistance: HDT A - 73°C, VICAT - 96°C
- Surface finish: Matte
- Vicat softening point: 96°C (ISO 306/A120)
- Weight: 1000 g (net), 1400 g (gross)
Packaging

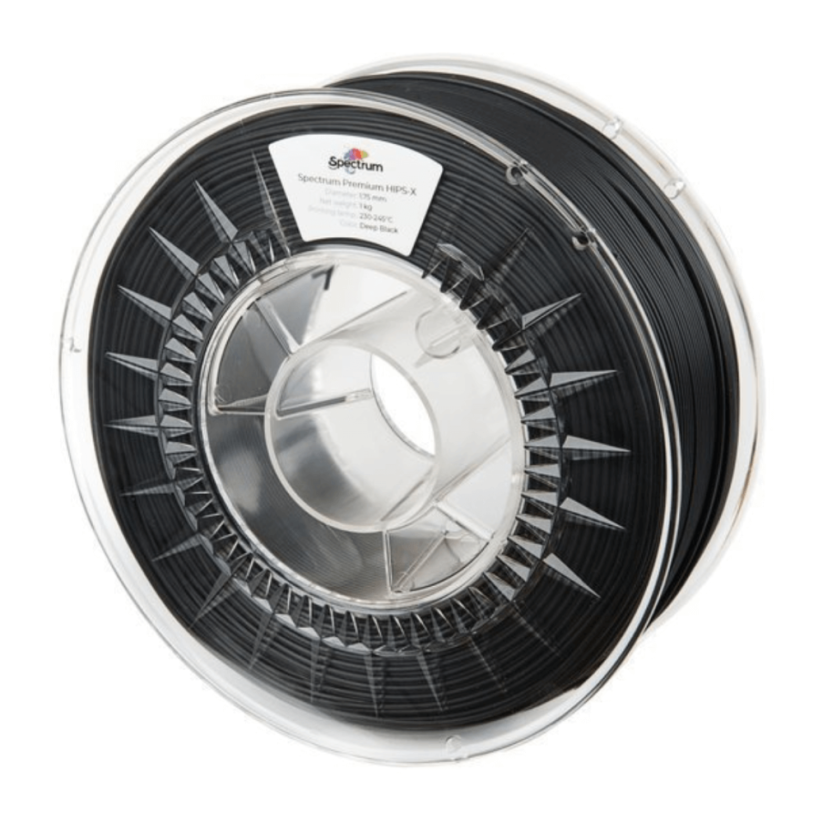

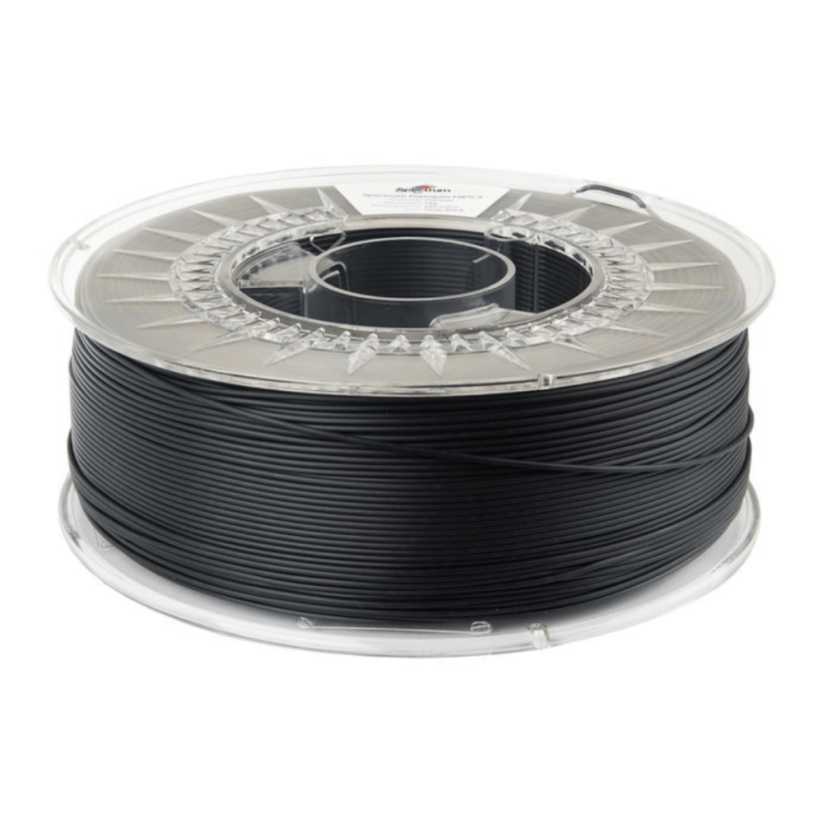

The Spectrum HIPS-X filament is wound on a clean, transparent spool that contains information about the material type, diameter, and recommended printing temperature. Each spool is vacuum-packed with a moisture absorber, and the entire product is packed in the original Spectrum Filaments packaging.
Color | |
---|---|
Manufacturer | Spectrum |
Filament weight | 1 Kg |
Filament material | HIPS |
Compatible with AMS | Partially compatible |
Compatible with AMS Lite | Yes |
Filament diameter | 1,75 mm |
Heated bed temperature | 80 - 100 °C |
Hotend temperature | 230 - 245 °C |
Diameter tolerance | ± 0,03 mm |
Spool diameter | 200 mm |
Material surface | Matt |
Spool width | 67 |
Spool hole diameter | 52 mm |
Closed chamber | Recommended |
Difficulty of printing | Advanced |
