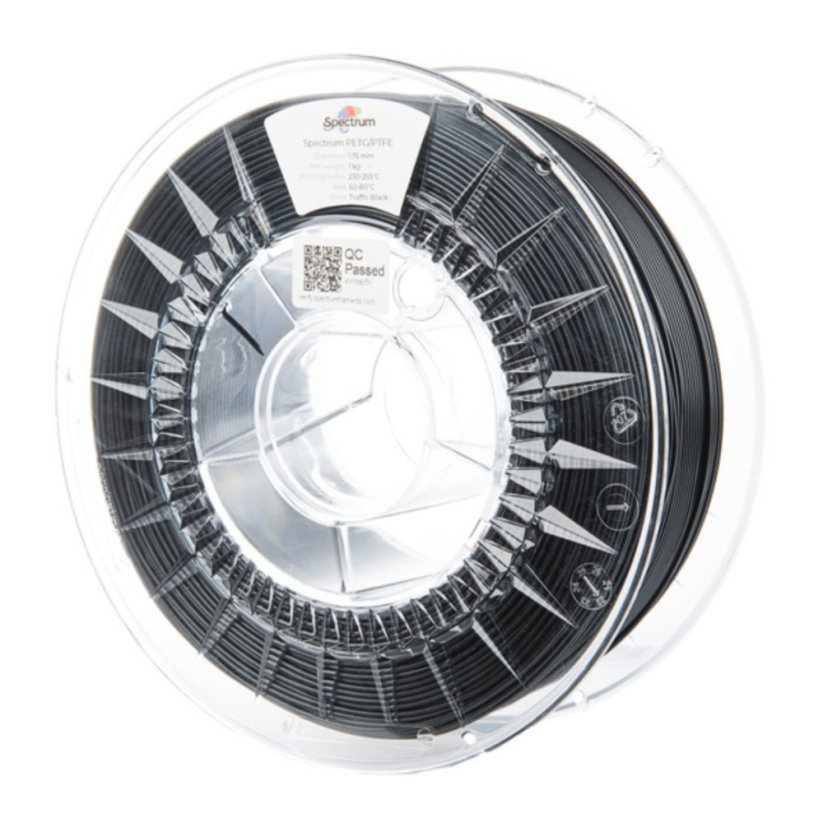

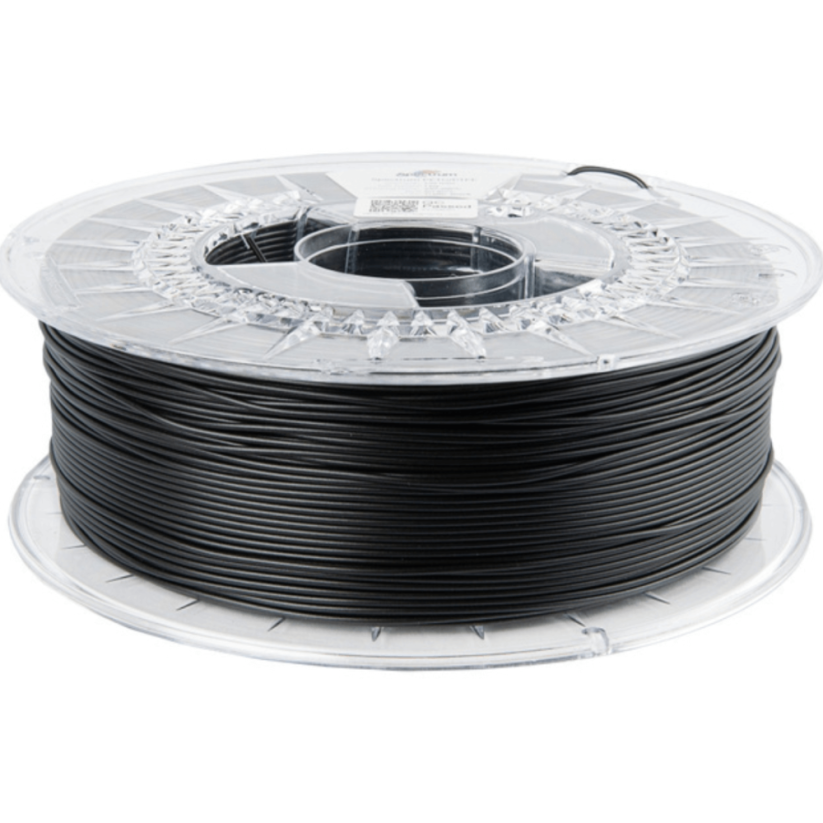

Spectrum PET-G/PTFE traffic black
Spectrum PET-G/PTFE traffic black
Filament Spectrum PETG/PTFE je materiál pre 3D tlač, ktorý kombinuje pevnosť PETG s vlastnosťami PTFE na zníženie trenia a opotrebenia. Tento filament s priemerom 1,75 mm je vhodný pre funkčné prototypy a pohyblivé súčasti, kde sa vyžaduje chemická odolnosť. Vďaka jednoduchej tlači a dobrej priľnavosti medzi vrstvami poskytuje stabilný výkon pre rôzne aplikácie. More
Manufacturer: SpectrumProduct code: TIFSCE151 Shipping and Payment
Filament Spectrum PETG/PTFE je materiál pre 3D tlač, ktorý kombinuje pevnosť PETG s vlastnosťami PTFE na zníženie trenia a opotrebenia. Tento filament s priemerom 1,75 mm je vhodný pre funkčné prototypy a pohyblivé súčasti, kde sa vyžaduje chemická odolnosť. Vďaka jednoduchej tlači a dobrej priľnavosti medzi vrstvami poskytuje stabilný výkon pre rôzne aplikácie. More
Manufacturer: SpectrumProduct code: TIFSCE151 Shipping and Payment
Spectrum PETG/PTFE
Spectrum PETG/PTFE filament is an advanced 3D printing material that combines the properties of PETG with PTFE characteristics aimed at reducing friction and wear. This filament offers a specific blend that combines strength, durability, and low friction, making it suitable for a wide range of applications from functional prototypes to industrial components.
Composition and Properties
Specific Material Blend
The filament consists of 90% PETG, which provides good mechanical properties, and 10% PTFE, known for its friction and wear-reducing properties. This combination creates a material with the following characteristics:
- Thermal Resistance: Up to 70 °C
- Reduced Coefficient of Friction: Thanks to the addition of PTFE
- Chemical Resistance: Good resistance to various chemicals
- Easy Printing: Maintains the ease of printing typical for PETG
Applications
Spectrum PETG/PTFE filament is a suitable choice for:
- Functional Prototypes: Due to its strength and durability
- Low Friction Components: Suitable for moving parts
- Gears and Drive Components: Applicable for less loaded parts
- Industrial Applications: Where chemical resistance and low friction are required
User Benefits
Versatility and Performance
This filament offers a combination of properties that make it suitable for a wide range of applications. Its ability to reduce friction in printed components can extend the lifespan and improve the functionality of 3D printed projects.
Print Quality
Thanks to easy printing and good layer adhesion, consistent prints can be achieved. The material retains the strength and durability of PETG while adding the benefits of reduced friction due to PTFE.
Compatibility
The filament is compatible with a range of 3D printers, including systems with automatic material exchange, such as Bambu Lab AMS.
Technical Specifications
- Recommended Printing Temperature: 230 - 255 °C
- Recommended Bed Temperature: 60 - 80 °C
- Filament Diameter: 1.75 mm
- Spool Weight: 1 kg
Packaging
Spectrum PETG/PTFE filament is supplied in a practical 1 kg package. The spool is designed to minimize the risk of tangling and facilitate handling during printing. The packaging is designed to protect the filament from moisture and contaminants, ensuring its long life and optimal performance.
Slovak:
Spectrum PETG/PTFE
Color | |
---|---|
Manufacturer | Spectrum |
Filament weight | 1 Kg |
Filament material | PET-G |
Compatible with AMS | Yes |
Compatible with AMS Lite | Ne |
Filament diameter | 1,75 mm |
Heated bed temperature | 70 - 80 °C |
Hotend temperature | 230-255°C |
Diameter tolerance | ± 0,03 mm |
Spool diameter | 200 mm |
Material surface | Matt |
Spool width | 55 mm |
Spool hole diameter | 52 mm |
Softening temperature | 70 °C |
Closed chamber | Not required |
Difficulty of printing | Advanced |
RAL Color | 9017 |
